Lake Style Headers

Big block Chevy flange plates 3/8" think

2" primaries

4" exhaust tubing

Slice it up for the cone

Fold and bend together to 2" inlet and 4" outlet

Tack it

2" mandrel bend, cut and fit

Fit in cone

Hole saw 2" holes for primaries

Weld it

Finished passenger side

Front Axel Modifications part 6

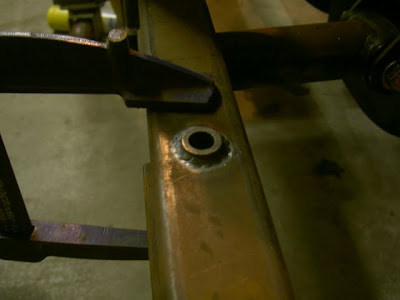

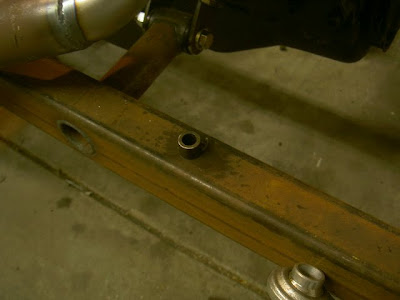

3/4" x .120 chromoly bushing for leaf spring bolt

Drill 1/2" hole to 9/16"
For leaf spring bolt

Drill frame and tack it

Weld it

A Change of Heart!

Decided to take the twin turbo small block out,

set it aside for now and substitute it with a

Big Block 427!

Just a little bigger!
Demon 850 double pumper

Chrome valve covers and aluminum Offenhauser intake

Front Axel Modifications part 5

Custom fab cross member with tabs

to attach quarter-leaves to axle

Custom fab center link with left and right hand heims
Front end set in place
and locate mounting points

Top link, axle and custom cross member bolted together

Top link

1974 Chevy half ton 4x4 rear leaf springs

cut in half to make the quarter leaf front end
